AT Active Speaker

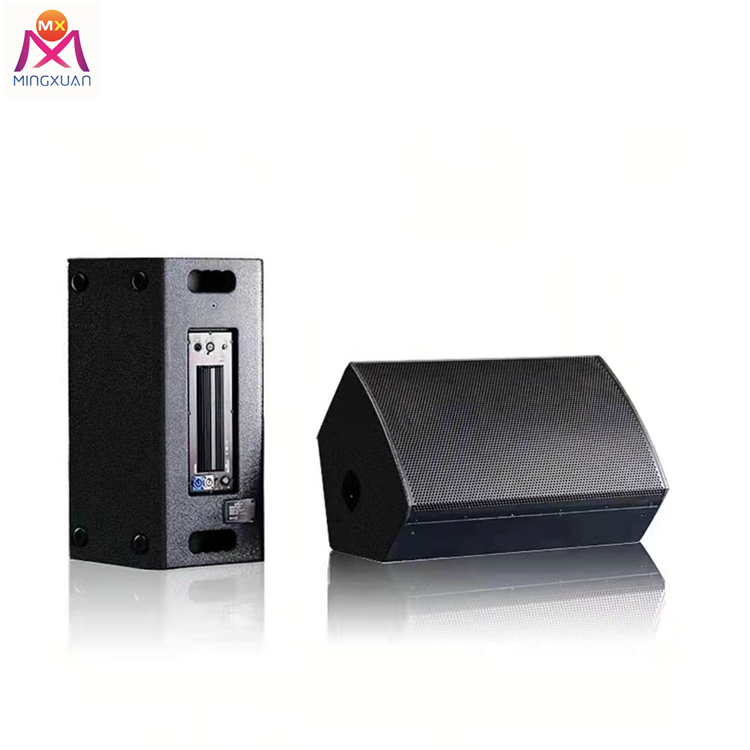

10'' full frequency active monitor speaker M-AT10

HF: 1x1.3" Neo
LF: 10" Neo
Built-in 500W digital power amplifier, the sound is clear and delicate. Suitable for conference rooms, electronic classrooms, multi-function halls, etc.

INQUIRY EMAIL

10’’ Full Frequency Active Speaker
Model	M-AT10
Driver	LF: 10" , Neodymium HF: 1x1.3", Neodymium
Power(AES/Peak)	250W/500W
Sensitivity (1 W/m)	96dB
Rated Maximum SPL	120dB ( peak@1m)
Frequency Range	65Hz-19.5KHz (±3dB)
Dispersion angle(V × H)	H100°× V50°
Amplifier module Class-D	Power: 500W
	Impedance: 20KΩ (balance)
	Sensitivity: 0.775V
	Distortion: <0.05%
	Damping Factor: ≥400
	Power Connector:Power Con
	Voltage: 90~120V/190~240V
Weight:	15Kg
Dimension	320×313×505mm
