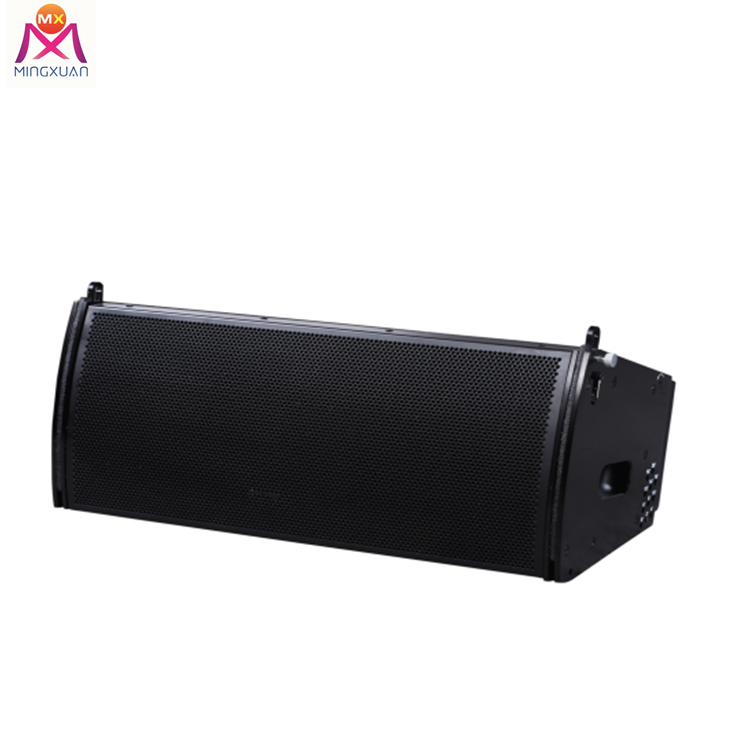

Powered Line Array Speaker

2X10'' active line array speaker with dsp M-A10A

MF: 2x10" , Neodymium, Celestion brand from UK
HF: 1x3", Neodymium, Celestion brand from UK
Built-in Amplifier 500W+1000W, Class-D
Built-in DSP processor, ALLDSP from Germany

INQUIRY EMAIL

2 Way Active Double 10’’ Line Array Speaker with DSP
Model	M-A10A
Driver	LF: 2x10" , Neodymium HF: 3", Neodymium
Power(AES/Peak)	MF：600W/1200W HF：100W/200W
Sensitivity (1 W/m)	MF:106dB HF:112dB
Rated Maximum SPL	MF:130dB, HF:135dB, ( peak@1m)
Frequency Range	60Hz-20KHz (±3dB)
Dispersion angle(V × H)	H120°× V20°
Amplifier module (Class-D)	Power: 500W+1000W/4Ω
	Impedance: 20KΩ (balance)
	Sensitivity: 0.775V
	Distortion: <0.05%
	Damping Factor: ≥400
	Power Connector:Power Con
	Voltage: 90~120V/190~240V
DSP processor	ALLDSP from Germany
Weight:	30Kg
Dimension	780×474×306mm
