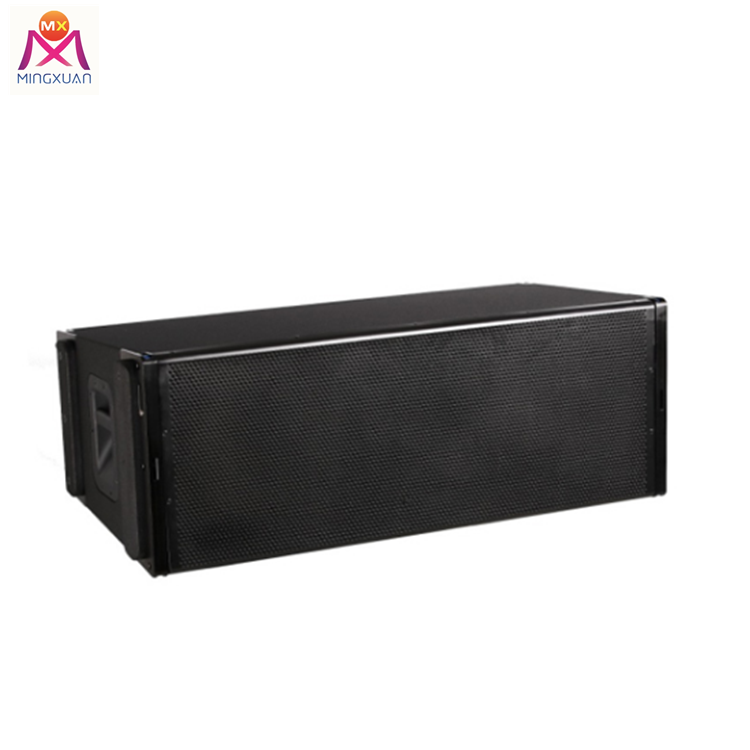

Powered Line Array Speaker

Outdoor 2x12'' active line array speaker with dsp M-A12A

HF: 2x2.5" Neo, 8ohm 160W, Original Celestion Driver CDX4-2420 , neodymium
LF: 2x12" Neo, 1000W , Original Paudio Driver , neodymium
Built-in 2 Channel Amplifier 500W+1500W, Class-D
Built-in DSP processor, ALLDSP from Germany

INQUIRY EMAIL

2 Way Active Double 12’’ Line Array Speaker with DSP
Model	M-A12A
Driver	MF: 2x12" , Neodymium Hi: 2x2.5", Neodymium
Power(AES/Peak)	MF：1000W/2000W HF：160W/210W
Sensitivity (1 W/m)	MF：104dB/HF：116dB
Rated Maximum SPL	MF:136dB/HF:141dB( peak@1m)
Frequency Range	55Hz-20KHz (±3dB)
Dispersion angle(V × H)	H120°× V20°
Amplifier module (Class-D)	Power: 500W+1500W/4Ω
	Impedance: 20KΩ (balance)
	Sensitivity: 0.775V
	Distortion: <0.05%
	Damping Factor: ≥400
	Power Connector:Power Con
	Voltage: 90~120V/190~240V
DSP processor	ALLDSP from Germany
Weight:	42Kg
Dimension	736×494×360mm

A12A is a high-end high-quality mid-to-high frequency line array speaker, which is composed of two 12-inch mid-low frequency units and two 2.4-inch high-frequency units. The tweeter is installed on the horn with constant directivity to produce undistorted waveforms. The speaker is characterized by a special compact cabinet design, light weight, easy installation and high sensitivity. There is an adjustable angle of 0°~10° between the cabinets.

A12A has a built-in two-channel power 500+1500W digital power amplifier to improve system efficiency. A one-in and two-out DSP digital audio processing module is used for tone correction, and system parameters can be adjusted by connecting to a computer through wifi.

Suitable for medium-sized mobile performances, stadiums, theaters, churches, Disco ballrooms and other entertainment venues.
